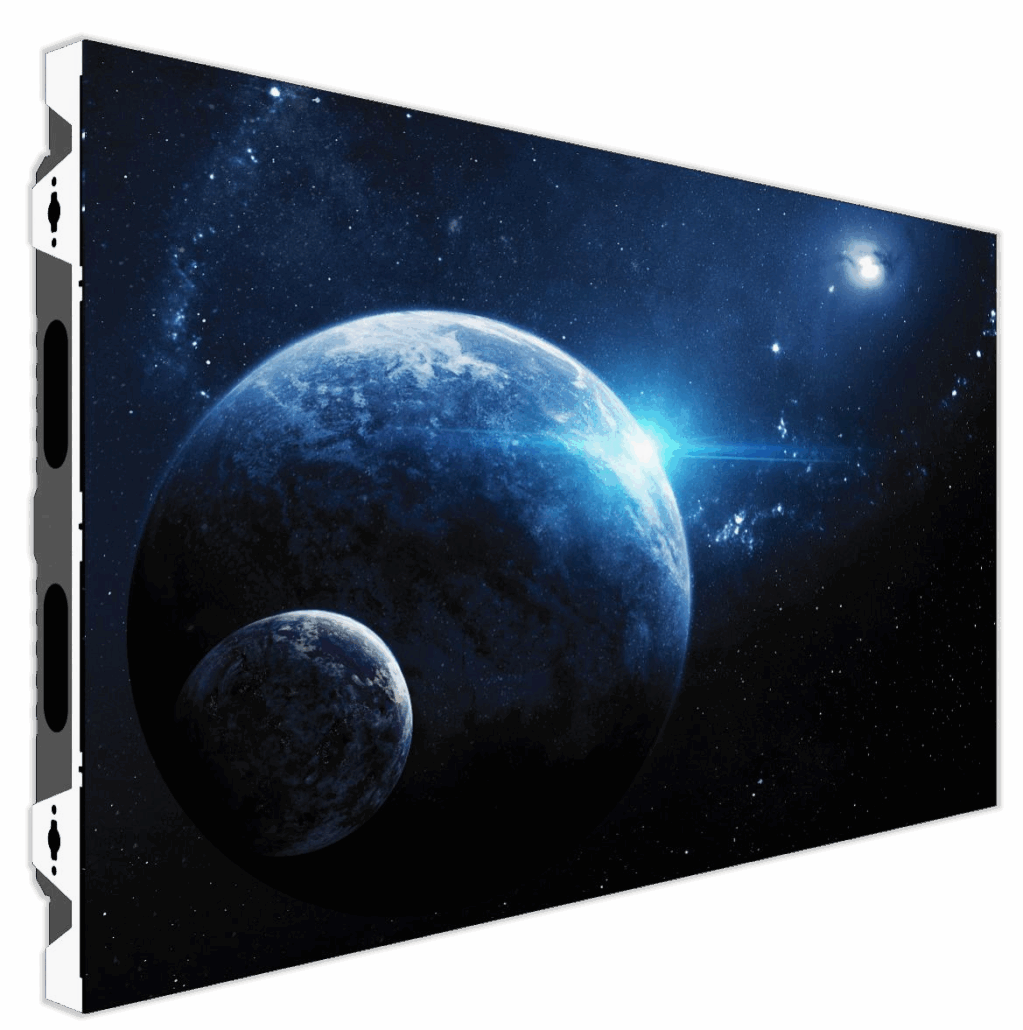

The Gloshine AE Series LED display delivers slim, lightweight, and energy-efficient performance for corporate, retail, and event spaces. With a 16:9 classic ratio, COB LED technology, and resolutions from 2K to 8K, it creates an extraordinary visual experience for any indoor installation.
Designed for versatility and long-term reliability, the AE Series combines stunning visuals with practical features. From boardrooms to lobbies, this indoor fixed HD LED display ensures vivid presentations and seamless video walls that are easy to maintain.
Slim and Light Design
Only 39.5 mm thick and 4.7 kg per panel.

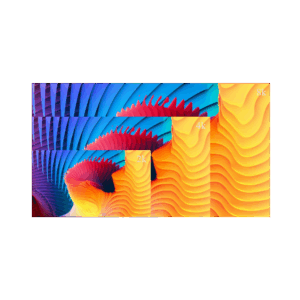

16:9 Classic Ratio

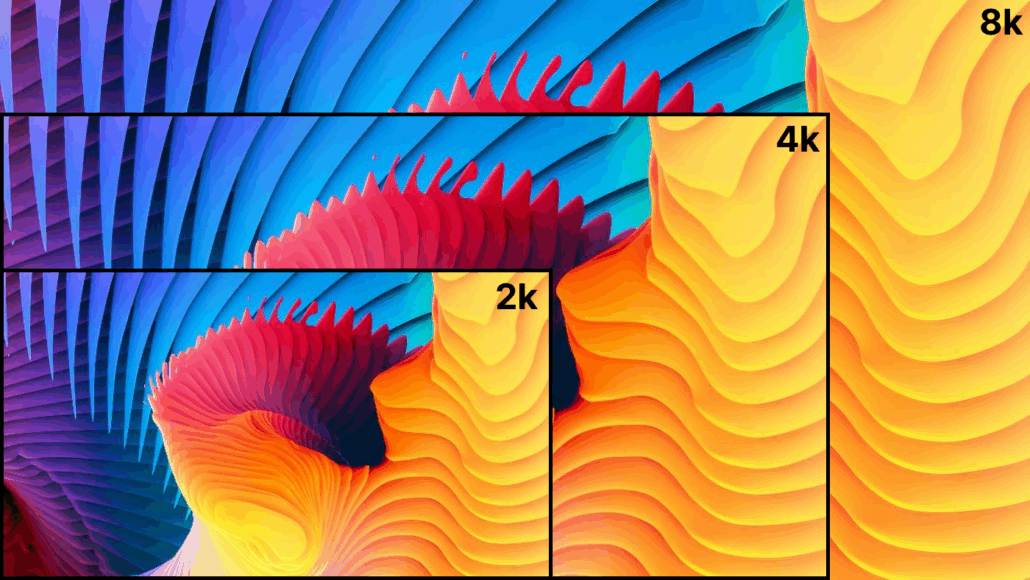

Matches human eye proportions; supports 2K, 4K, and 8K visuals.

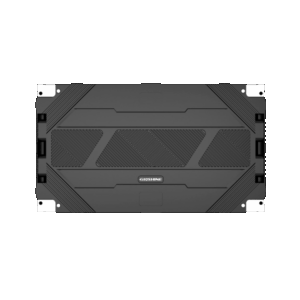

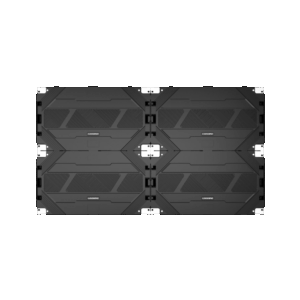

High-Strength Build
Die-cast aluminum ensures durability and superior heat dissipation.
Silent, Energy-Saving Operation
Up to 90% efficiency with no fans and zero noise.

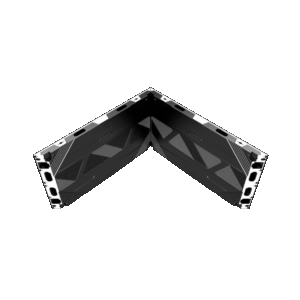

45° Cabinet Option
Enables right-angle, cubic, and 3D installations for creative applications.
Gloshine’s Golden Vision system ensures vibrant, lifelike color reproduction and consistent performance. Using COB LEDs and high-quality components, the AE Series maintains image clarity and stability over extended operation.
| Model | Pixel Pitch | Pixel Density (px/m²) | Panel Resolution | Brightness | Refresh Rate | Weight | Dimensions (W×H×D) | Power (Max / Avg) | Lifetime | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| AE0.9 | 0.9375 mm | 1,137,777 | 640 × 360 | 550–650 nits | 1920–3840 Hz | 4.7 kg | 600×337.5 × 39.5 mm | ≤ 330w / ≤ 165w | 50,000 h | H: 160° / V: 140° |
| AE1.1 | 1.17 mm | 730,512 | 512 × 288 | 550–650 nits | 1920–3840 Hz | 4.7 kg | 600×337.5 × 39.5 mm | ≤ 330w / ≤ 165w | 50,000 h | H: 160° / V: 140° |
| AE1.2 | 1.25 mm | 640,000 | 480 × 270 | 550–650 nits | 1920–3840 Hz | 4.7 kg | 600×337.5 × 39.5 mm | ≤ 330w / ≤ 165w | 50,000 h | H: 160° / V: 140° |
| AE1.5 | 1.56 mm | 409,600 | 384 × 216 | 550–650 nits | 1920–3840 Hz | 4.7 kg | 600×337.5 × 39.5 mm | ≤ 330w / ≤ 165w | 50,000 h | H: 160° / V: 140° |
Corporate boardrooms and meeting rooms

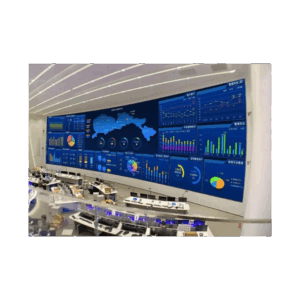

Control rooms and command centers
Retail showrooms and hospitality spaces
Auditoriums, event venues, and lobbies
Creative curved and naked-eye 3D installations
What makes the AE Series ideal for corporate or permanent installations?
Its ultra-slim 39.5 mm die-cast aluminum cabinets, silent fanless design, energy efficiency (up to 90%), and 16:9 COB LED visuals make it perfect for boardrooms, auditoriums, and control environments.
Are AE panels suitable for high-resolution content like 4K or 8K?
Yes! The series supports native 1080p, 2K, 4K, and even 8K resolutions—delivered through a tight pixel pitch and COB technology for sharp, dot-to-dot image clarity.
