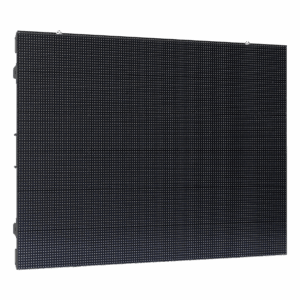

Blade Series

Simple structure and high cost performance.

Full new generation ultra-light small pixel pitch indoor rental LED screens

Features Visual Specifications

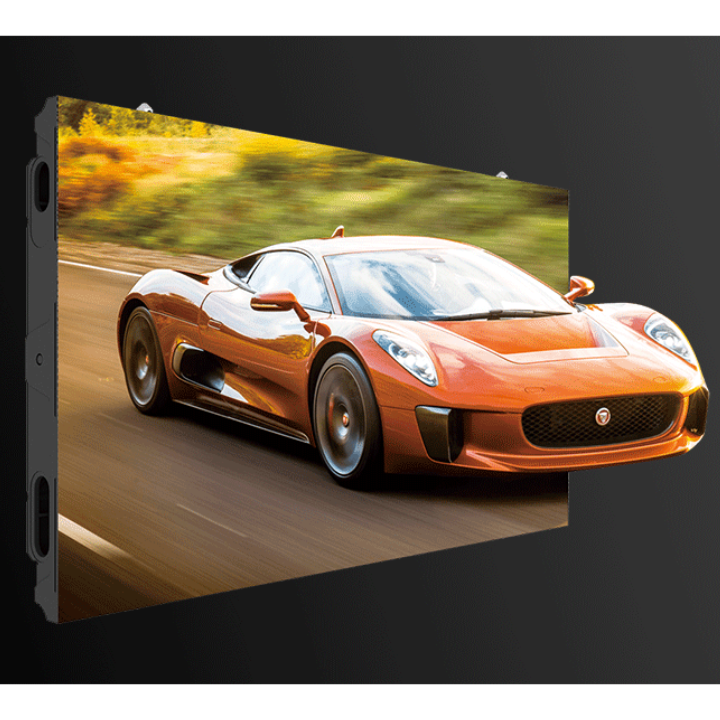

High-Definition

High Contrast

Lightweight

90° Corner

Wide Angle

BD Series Features

Core functions and capabilities of Blade Series.

Structure Dimension Splicing Installation Efficiency

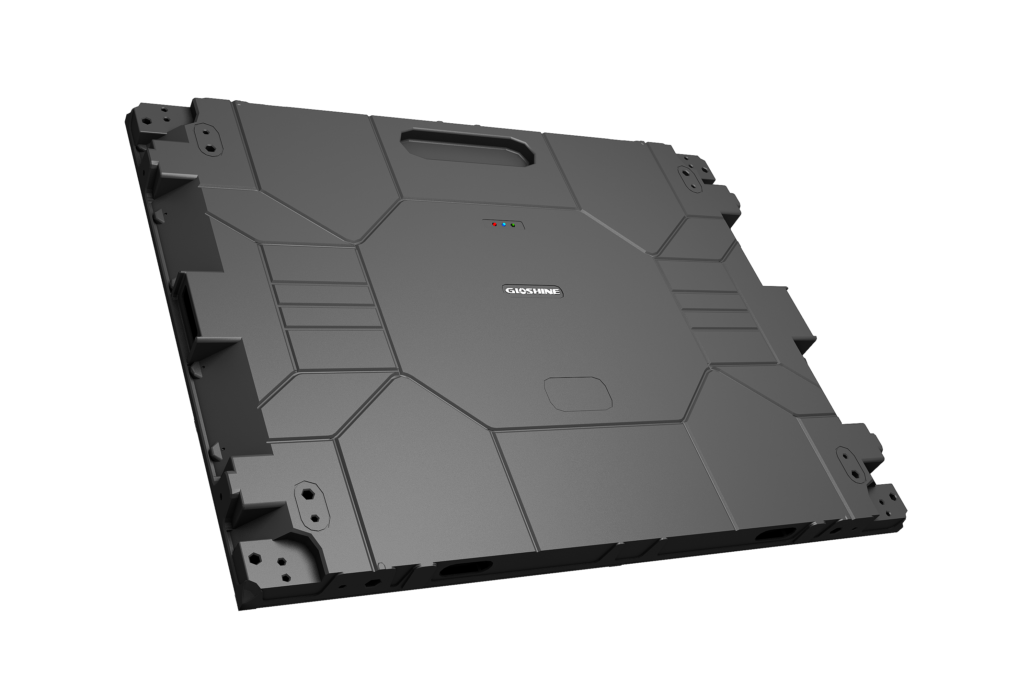

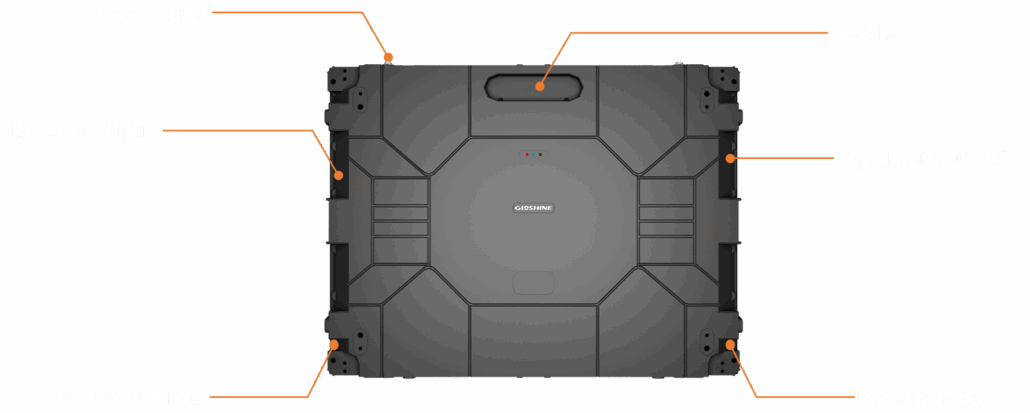

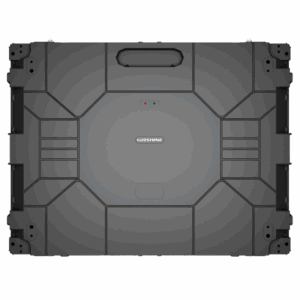

Blade Series Structure

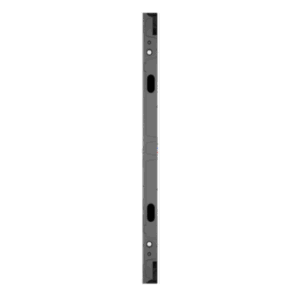

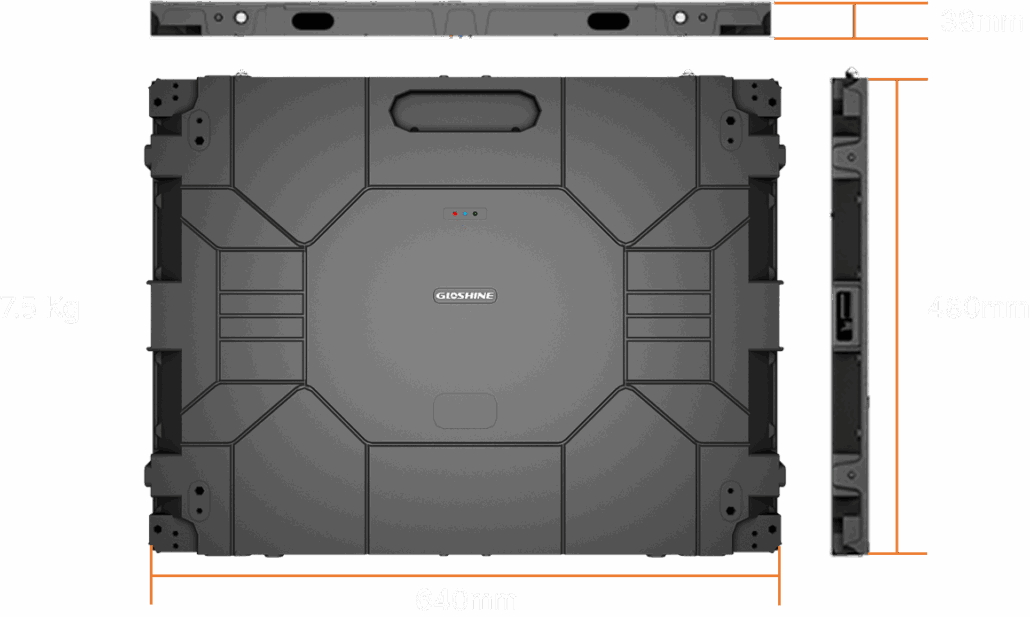

Blade Series Dimension

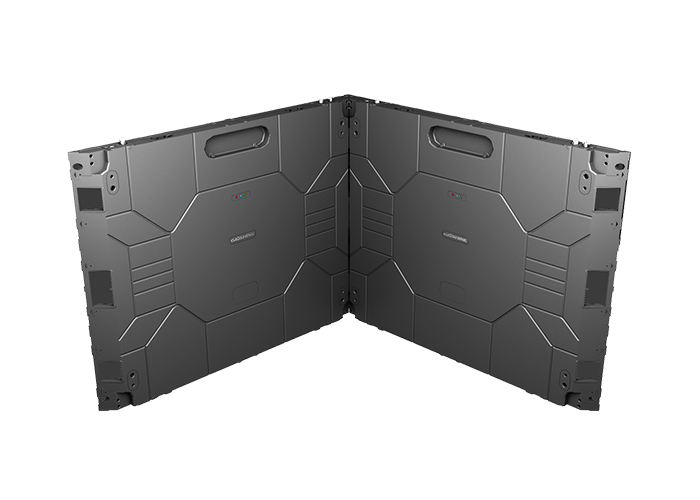

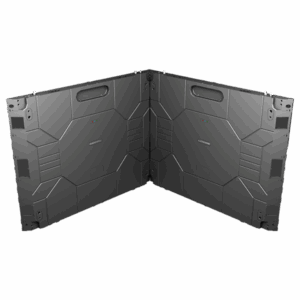

90° Splicing

Enables 90-degree splicing for creative screen designs, allowing seamless right-angle connections with precise alignment and stable performance.

Hanging

Customised back plate design can effectively conceal cabinet cables, offering material/color/pattern options to ensure visual consistency and enhance brand recognition.

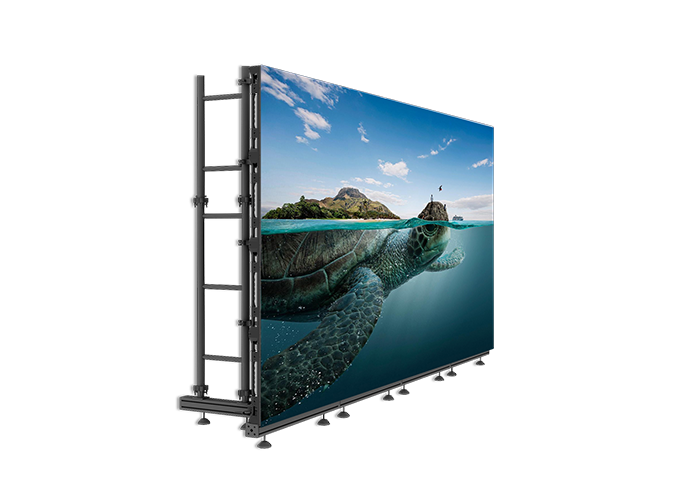

Vertical Installation

Supports vertical installation with a slim, lightweight design, ensuring stable structure and seamless screen alignment for diverse display setups.

Energy-saving power supply

Low consumption and environmental protection.

BD Series Visual Performance

Stunning clarity with true-to-life colors.

Wide Color Gamut

Other color technologies

Wide color gamut technology

BD Series Specification

Comprehensive product details at a glance.

Model No	BD 1.25	BD 1.53	BD 1.86	BD 2.0	BD 2.50
Plxel Pitch	1.25mm	1.53mm	1.86mm	2.0mm	2.50mm
GOB	Optional	Optional	Optional	Optional	Optional
Pixel Density	640000pixel/m²	422500pixel/m²	288906pixel/m²	250000pixel/m²	160000pixel/m²
Brightness	300-500nits	400-600nits	500-800nits	500-800nits	600-900nits
Color Temperature	6500-9500k	6500-9500k	6500-9500k	6500-9500k	6500-9500k
Panel Dimension	640mmX480mmX38mm	640mmX480mmX38mm	640mmX480mmX38mm	640mmX480mmX38mm	640mmX480mmX38mm
	25.2″x18.9″x1.5″	25.2″x18.9″x1.5″	25.2″x18.9″x1.5″	25.2″x18.9″x1.5″	25.2″x18.9″x1.5″
Panel Resolution	512*384 pixel	416 * 312 pixel	344*258 pixel	320*240 pixel	256*192 pixel
Panel Weight	≤8kg/17.64lb	≤8kg/17.64lb	≤8kg/17.64lb	≤8kg/17.64lb	≤8kg/17.64lb
Cabinet Material	Die-casting Cabinet	Die-casting Cabinet	Die-casting Cabinet	Die-casting Cabinet	Die-casting Cabinet
Max Power Consumption	≤600w/m²	≤600w/m²	≤600w/m²	≤600w/m²	≤600w/m²
AVG Power Consumption	≤300w/m²	≤300w/m²	≤300w/m²	≤300w/m²	≤300w/m²
Viewing Angle	H:160° V:140°	H:160° V:140°	H:160° V:140°	H:160° V:140°	H:160° V:140°
Refresh Rate	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz
Gray Scale	13-15bit	13-15bit	13-15bit	13-15bit	13-15bit
IP Rating	IP30	IP30	IP30	IP30	IP30
Curve	Optional	Optional	Optional	Optional	Optional
Lifetime	50, 000h	50, 000h	50, 000h	50, 000h	50, 000h
Operating Temp/Humidity	-20°C~+45°C; 10%-60%RH	-20°C~+45°C; 10%-60%RH	-20°C~+45°C; 10%-60%RH	-20°C~+45°C; 10%-60%RH	-20°C~+45°C; 10%-60%RH
Storage Temp/Humidity	-40°C~+60°C; 10%60%RH	-40°C~+60°C; 10%60%RH	-40°C~+60°C; 10%60%RH	-40°C~+60°C; 10%60%RH	-40°C~+60°C; 10%60%RH
